Pre-Rinse Unit: Long Height Double Lever Single Hole Deck Mount, High Flow Spray Valve & C8442-KIT
Sign In To View Price
- Stainless steel braided inner hose protecting the hose from splitting in use
- With faucet which can be controlled independently
- Outer support spring.
Option Available :-
Out of stock
Sign In To View Price
Out of stock
- Details
- Specifications
- Replacement Parts

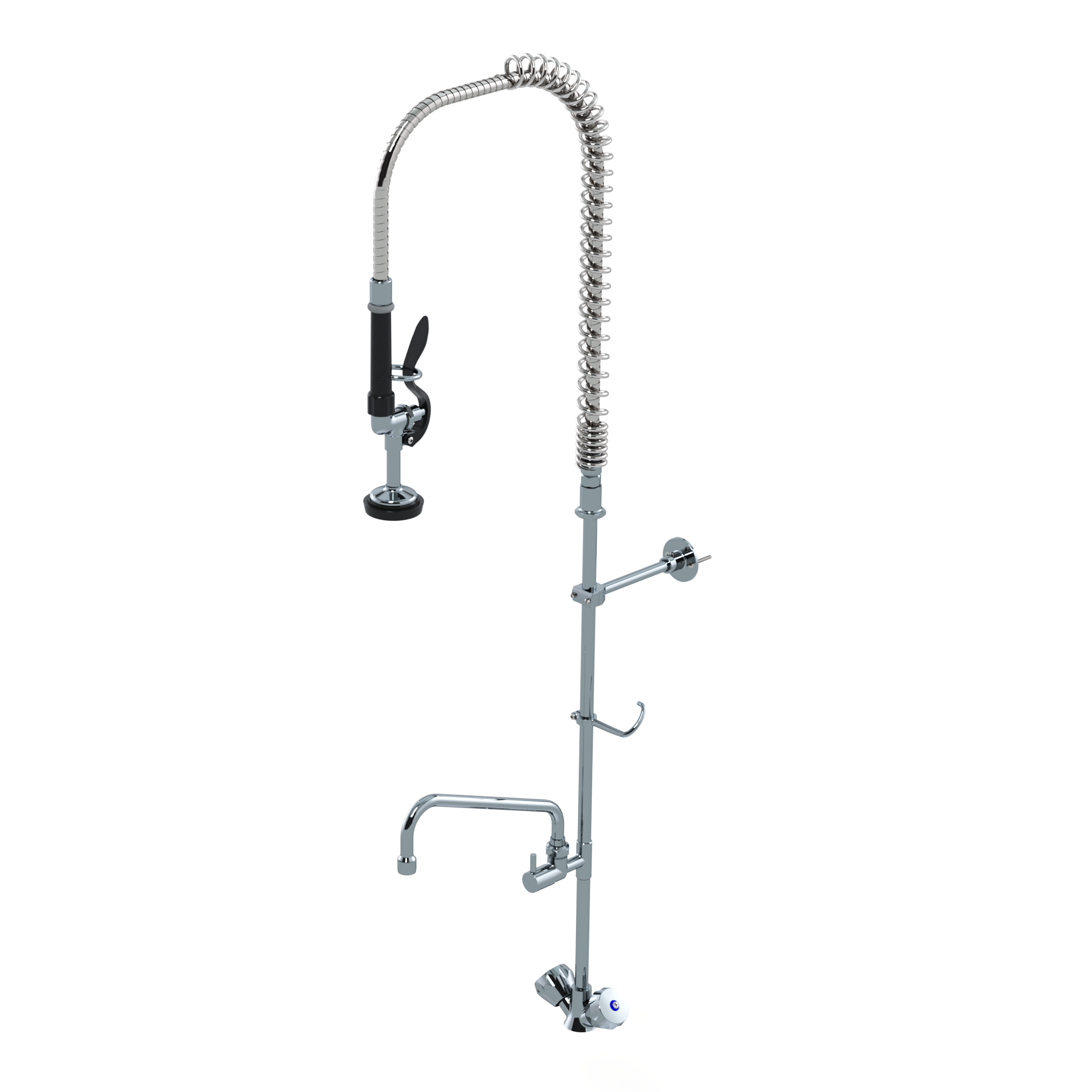

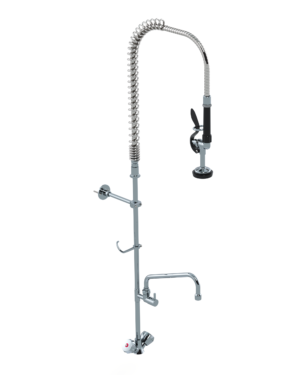

Pre-Rinse Unit: Long Height Double Lever Single Hole Deck Mount, High Flow Spray Valve & C8442-KIT
This high flow Pre-rinse unit in deck mount style is sure to reduce your time and efforts in dish washing.
- 50″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle
- you can improve your workflow with the more efficient cleanup process.
- Outlet Flow rate: 4.50GPM @ 60 psi,High-flow pre-rinse spray Also options available in Spray valve i.e, 1.2 GPM and 1.42 GPM
- Polished Chrome Plated Brass Body.
- Designed to remove food waste from dishes prior to dish washing.
- Lever Handles With Color Coded Red & Blue Indexes.
- Deck Mounted Body With Hoses Included.
- Pre Rinse Spray Head Riser Tube Hook
- 6″ Wall Mount Bracket For Upright Pre Rinse
- Outer support spring.
We provide this Kit which has everything you need to quickly and easily replace a broken supply line. You can install a new faucet, saving you time and money on trips to the hardware store!.
Features
- Extension Handle for Pre Rinse Spray Head (Black)
- Check Valve for 15mm OD Copper Tubing Assembly
- High Flow Spray Valve for Pre Rinse 4.50 GPM , Also options available in Spray valve i.e, 1.2 GPM and 1.42 GPM
- Heavy duty cross head tap
- Inlet 1/2″ NPT Female and has adjustable centers
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- weight- 13.5 lbs
Replace free flow aerators with the below Aerators as per your requirement
Warnings / Instructions
| Spray Valve Flow | 4.50 GPM |
| Mount Type | Deck Mount |
| Wall Bracket | 6 Inch Wall Bracket |
| Body | Single Hole |
| Nozzle Length | 10 Inch |
| Riser Tube | 18 Inch |
| Catridge Spindle | Classic |
| Nozzle Type | Swivel |
| Handle | Double Lever Handle |
| Inlet | 1/2" NPT Female |
| Material | Brass |
| Finish | Polished Chrome |

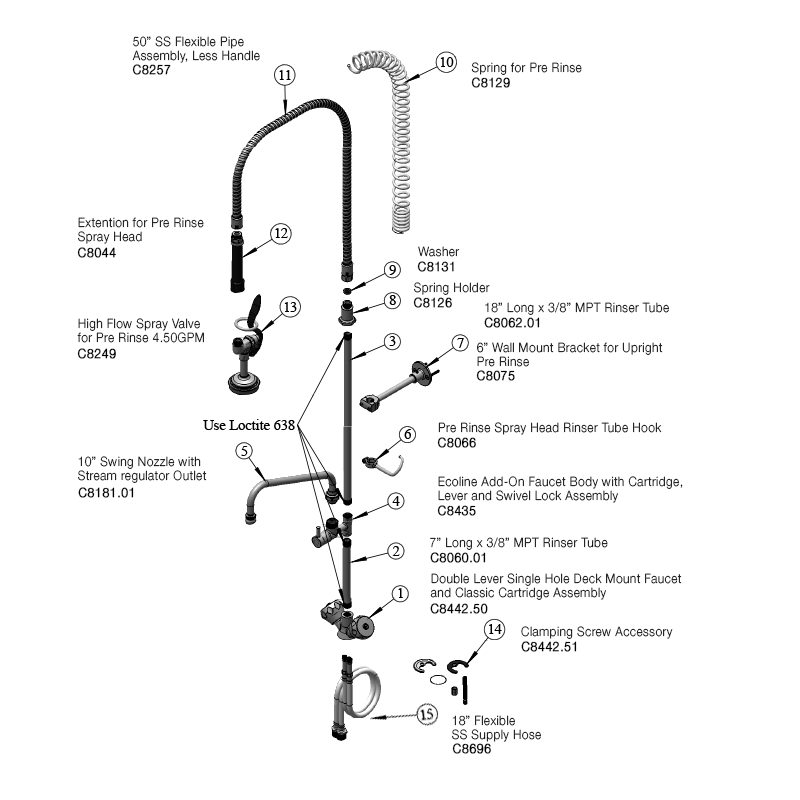

Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
M1-9AAS-8USO | Quarter Turn Cartridge (HOT) for Manual Faucet | Sign In To View Price | out of stock | |
| 2 |
|
C8139 | Oval ( Raised Head) Nylock Screw for Handle | Sign In To View Price | out of stock | |
| 3 |
|
KP-NB68-25F6 | Lever for Pre Rinse Spindle Assembly | Sign In To View Price | In Stock | |
| 4 |
|
OH-KQNT-4NHW | Pre Rinse Spray Head Riser Tube Hook | Sign In To View Price | In Stock | |
| 5 |
|
IF-4MGF-6J86 | 6″ Wall Mount Bracket For Upright Pre Rinse | Sign In To View Price | In Stock | |
| 6 |
|
89-W96R-X6F4 | Spring Holder | Sign In To View Price | In Stock | |
| 7 |
|
X7-0BGA-VOC9 | Pre-Rinse Faucet Spring | Sign In To View Price | In Stock | |
| 8 |
|
72-CD2W-XMQ0 | 50″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle | Sign In To View Price | In Stock | |
| 9 |
|
C8044 | Extension Handle for Pre Rinse Spray Head (Black) | Sign In To View Price | out of stock | |
| 10 |
|
xyz-123 | High Flow Pre-rinse spray Valve 4.50 GPM, 17 LPM | Sign In To View Price | In Stock | |
| 11 |
|
PF-3D4A-KI2V | Check Valve for 15mm OD Copper Tubing Assembly | Sign In To View Price | In Stock |
