PART-NUMBER : C8219 SKU: C8219

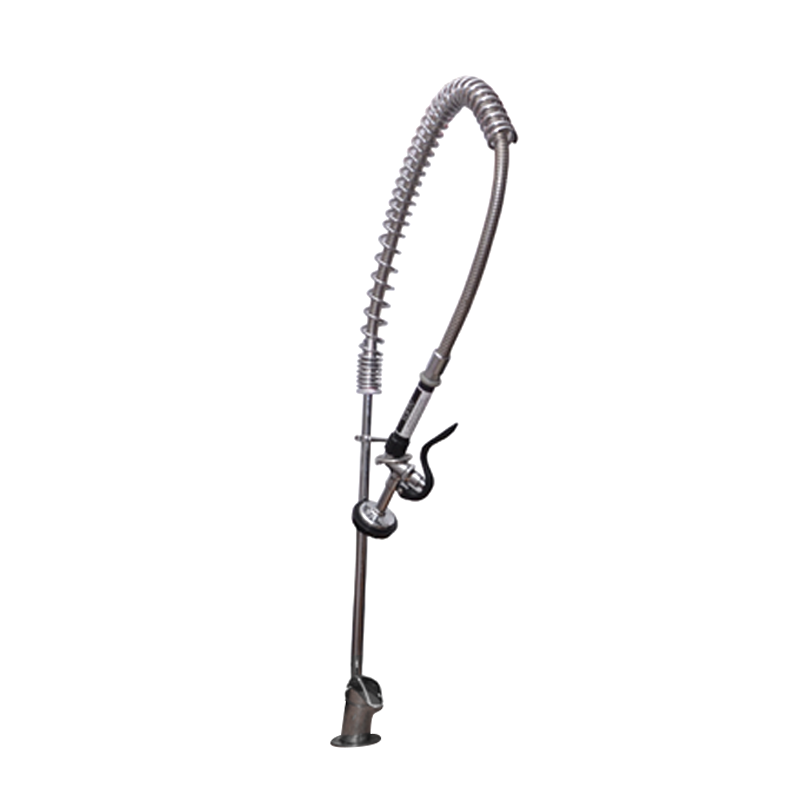

Pre-Rinse Unit: Single Lever Deck Mount Faucet with High Flow Spray Valve
- Eco line pre-rinse high flow. 44″ Flexible Stainless Steel Hose.6″ Wall Bracket
- Inlet Kit (C8584) is sold separately.
Option Available :-
In stock (can be backordered)
- Details
- Specifications
- Replacement Parts

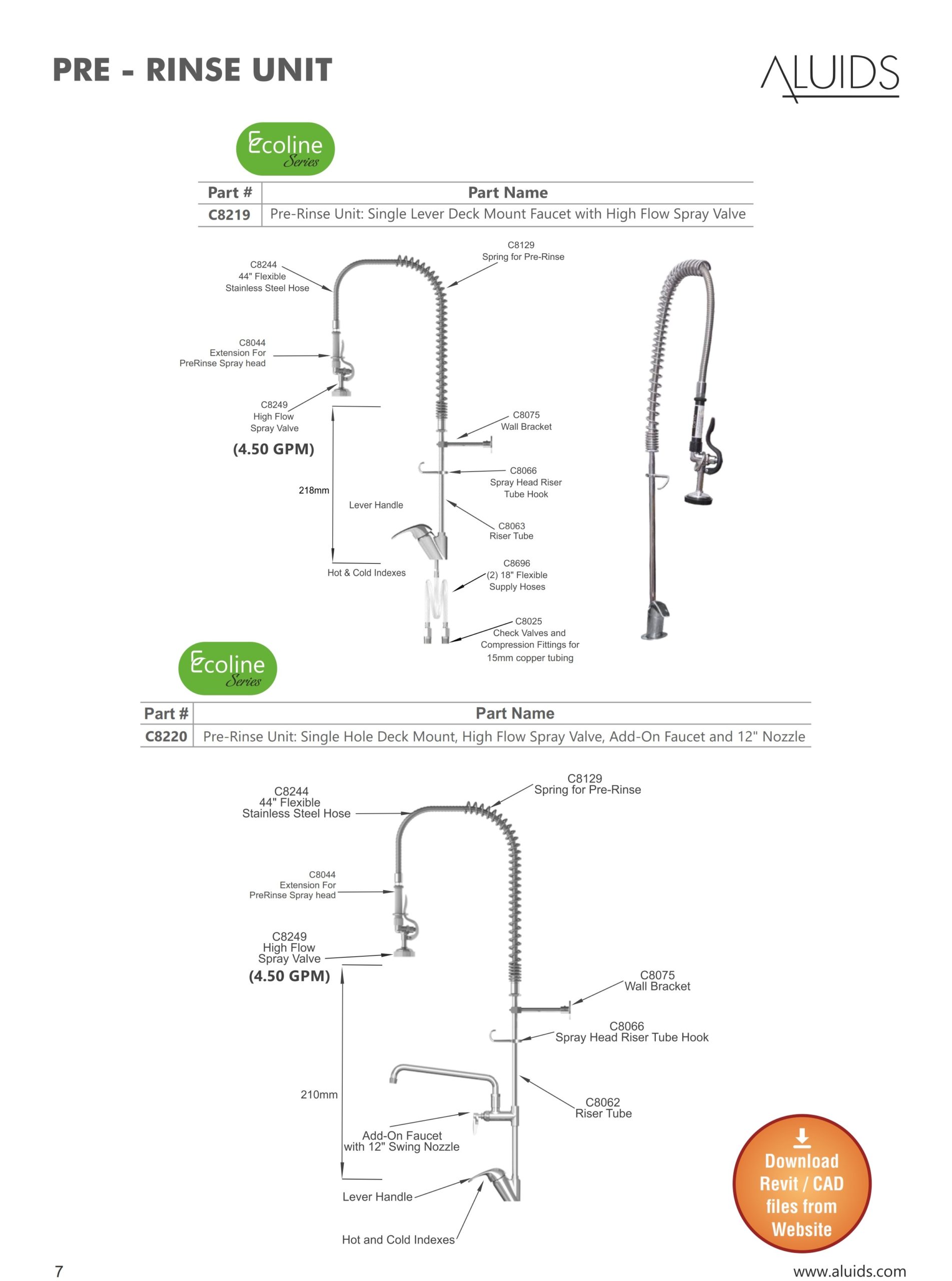

Pre-Rinse Unit: Single Lever Deck Mount Faucet with High Flow Spray Valve
- Eco line pre-rinse high flow. 44″ Flexible Stainless Steel Hose.6″ Wall Bracket, High Flow Spray Valve, Also options available in Spray Valve i.e, 1.2 GPM and 1.42 GPM.Included lever handle, Outer support spring.
- Faucet control independently
- 18″ Flexible Steel Supply Hoses
- High Flow Spray Valve, Also options available in Spray Valve i.e, 1.2 GPM and 1.42 GPM

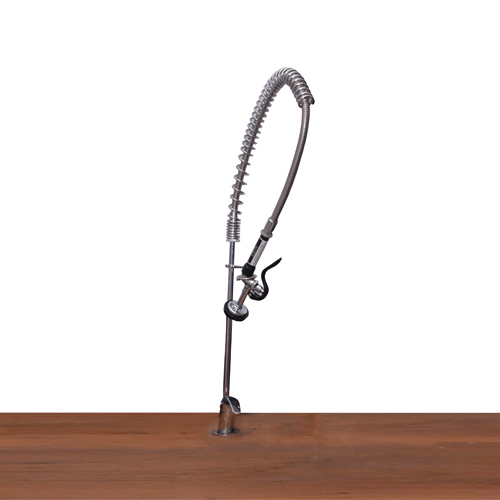

Eco line pre-rinse high flow – Brass material with polished body and 6″ adjustable wall bracket. Pre-rinse spray valve used in the commercial and institutional scullery. Deck mount faucet is the faucet, mounts directly to the countertop. Single lever deck mount faucet with high flow spray valve is used to remove food from dish previous to dishwashing. Eco line pre-rinse High flow spray valve removes the stain from dishes. It also saves water costs.
Features
- Heavy duty cross head tap
- Stainless steel braided inner hose protecting the hose from splitting in use
- Designed to remove food waste from dishes prior to dishwashing.
- 44″ flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 18″ rigid riser
- Lever handles w/ color coded screws
- Quarter-turn ceramic cartridges
Downloads
Warnings / Instructions
Material | Brass |
Finish | Polished Chrome |
Body Type | Deck Mount |
Handle | Lever handle with colour coded screws |
Spray Valve | 4.50 GPM - High Flow Spray Valve |
Wall Bracket Length | 6 Inch |
Rinser Tube | 18 inch |
Inlet | 1/2" NPT Female |
Add on Faucet | No |
Pressure Max | Pressure Max: 125 psi (8.62 bar) |
Pressure Min | Pressure Min: 20 psi (1.38 bar) |
Standard Packing | 2 |

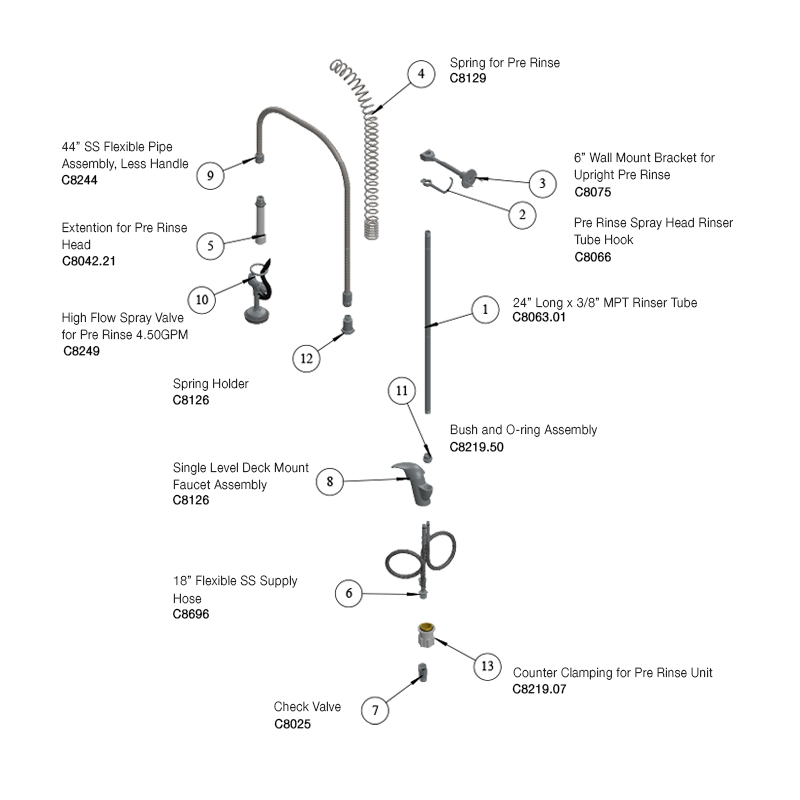

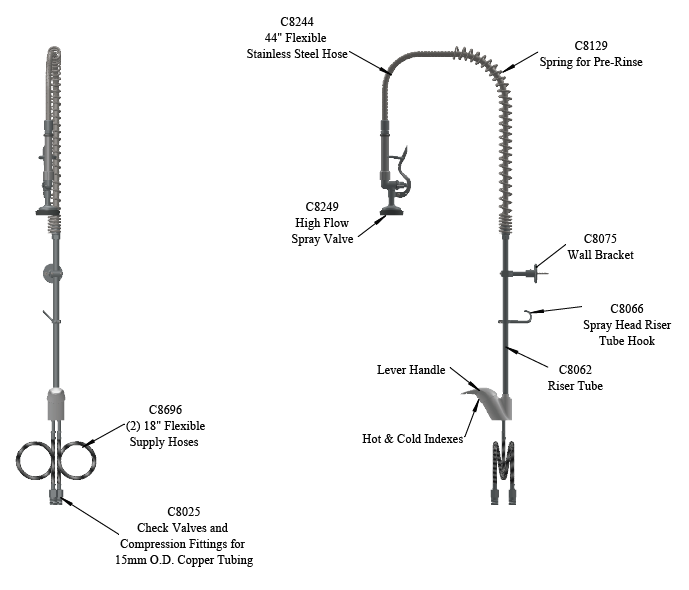

Replacement Parts
Part # | Description | Price | ||||
---|---|---|---|---|---|---|
1 |
![]() |

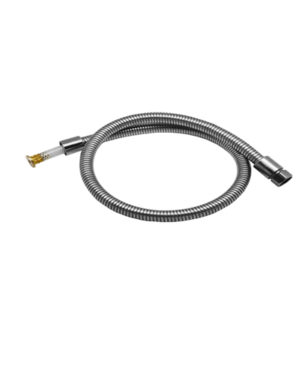

KL-2K54-ONEQ | 44″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle | In Stock | ||
2 |
![]() |
X7-0BGA-VOC9 | Pre-Rinse Faucet Spring | In Stock | ||
3 |
![]() |

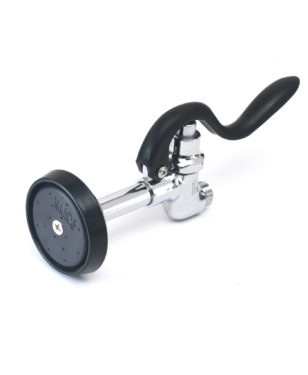

xyz-123 | High Flow Pre-rinse spray Valve 4.50 GPM, 17 LPM | out of stock | ||
4 |
![]() |

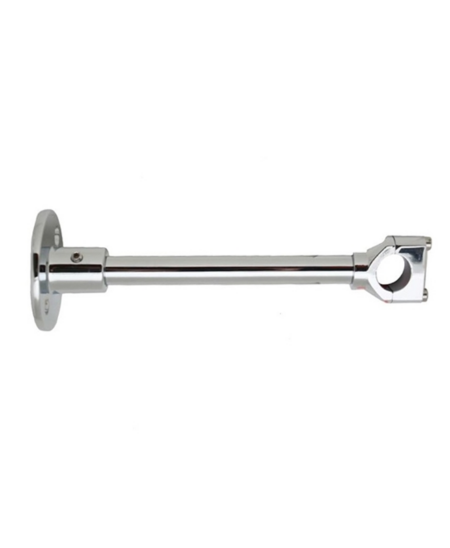

IF-4MGF-6J86 | 6″ Wall Mount Bracket For Upright Pre Rinse | out of stock | ||
5 |
![]() |
OH-KQNT-4NHW | Pre Rinse Spray Head Riser Tube Hook | In Stock | ||
6 |
![]() |
7O-VV6M-ZQ3P | 24″ Long x 3/8 MPT – Riser Tube | out of stock | ||
7 |
![]() |
PF-3D4A-KI2V | Check Valve for 15mm OD Copper Tubing Assembly | In Stock |
