Pre-Rinse Unit: Single Hole Deck Mount, High Flow Spray Valve, Add-On Faucet and 12″ Nozzle
Sign In To View Price
- High-flow pre-rinse spray
- Heavy duty cross head tap
- Outer support spring.
- 44″ Stainless steel hose
Option Available :-
Available on backorder
- Details
- Specifications
- Replacement Parts

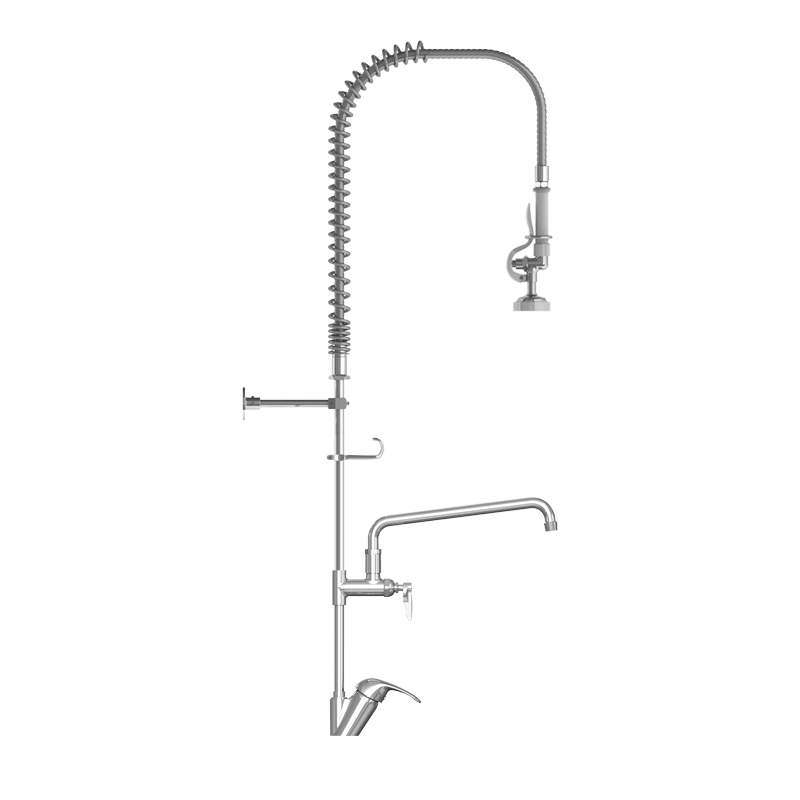

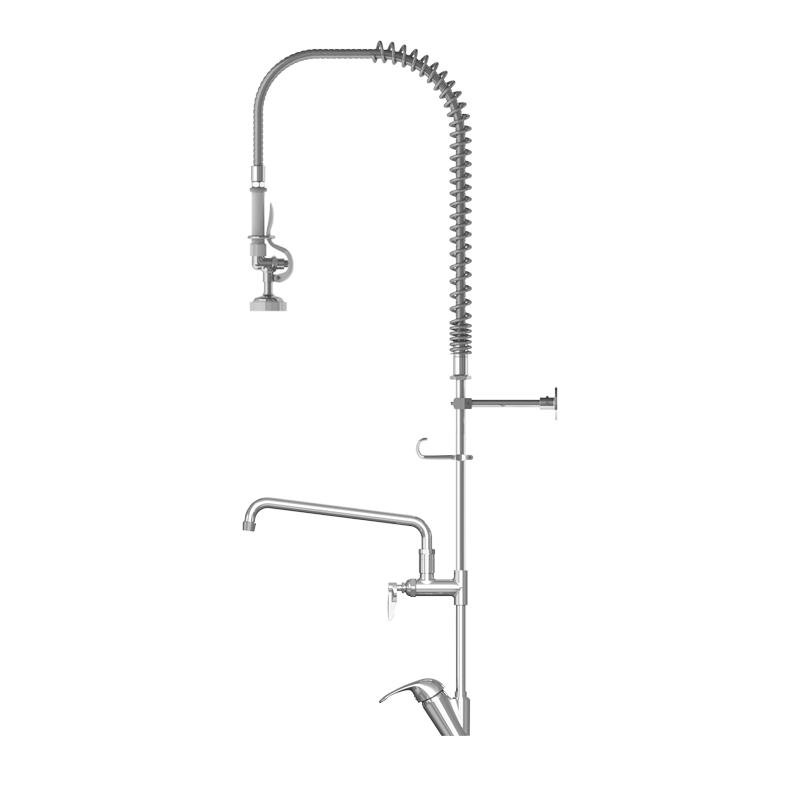

Ecoline pre-rinse unit with add-on faucet and single hole surface mounting style.
- Single Lever Deck Mount Faucet with 24″ Riser tube
- Includes add-on Faucet with 12″ Swing Nozzle
- 44″ Flexible Stainless Steel Hose
- High Flow Spray Valve
- 6″ Wall Bracket
- 18″ Flexible Steel Supply Hoses
- Outer support spring.
- 18″ rigid riser
- Lever handles with colorful coded screws
- Quarter-turn ceramic cartridges
Features
- Designed to remove food waste from dishes prior to dish washing.
- Stainless steel braided inner hose protecting the hose from splitting in use
- Heavy duty cross head tapReplace free flow aerators with the below Aerators as per your requirement
Warnings / Instructions
| Material | Brass |
| Finish | Polished Chrome |
| Spray Valve Flow | 4.50 GPM |
| Mount Type | Deck Mount |
| Wall Bracket | 6 Inch |
| Body | 4 Inch |
| Riser Tube | 24 Inch |
| Catridge Spindle | Classic |
| Add on Faucet | Yes |
| Nozzle Type | Swivel |
| Nozzle Length | 12 Inch |
| Handle | Double Lever Handle |
| Inlet | 1/2'' NPT Female |
| Inlet | Adjustable Centers |
| Pressure Max | Pressure Max: 125 psi (8.62 bar) |
| Pressure Min | Pressure Min: 20 psi (1.38 bar) |

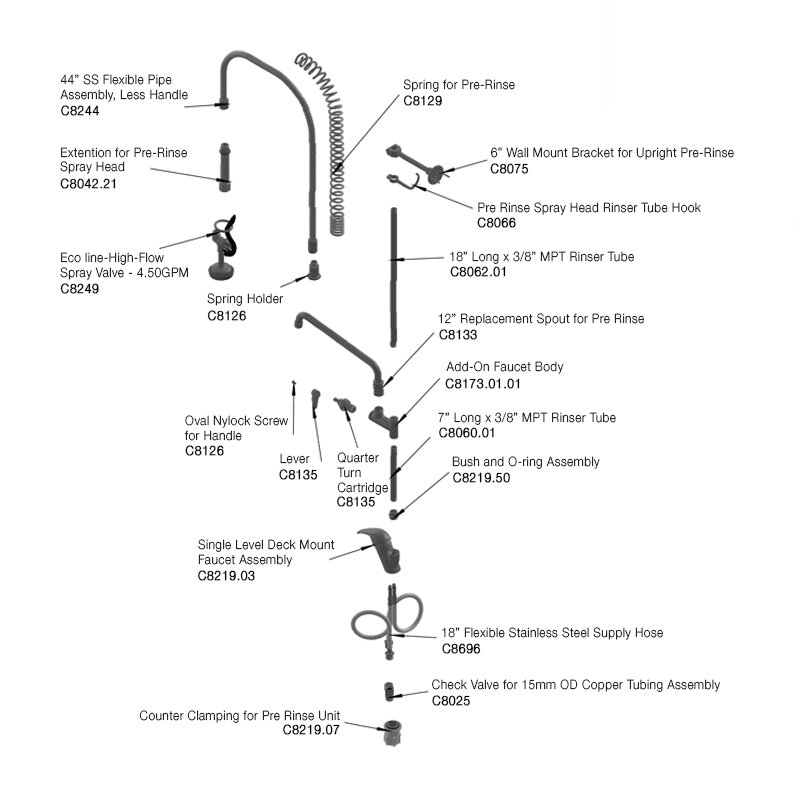

Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
KL-2K54-ONEQ | 44″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle | Sign In To View Price | In Stock | |
| 2 |
|
X7-0BGA-VOC9 | Pre-Rinse Faucet Spring | Sign In To View Price | In Stock | |
| 3 |
|
xyz-123 | High Flow Pre-rinse spray Valve 4.50 GPM, 17 LPM | Sign In To View Price | out of stock | |
| 4 |
|
IF-4MGF-6J86 | 6″ Wall Mount Bracket For Upright Pre Rinse | Sign In To View Price | out of stock | |
| 5 |
|
OH-KQNT-4NHW | Pre Rinse Spray Head Riser Tube Hook | Sign In To View Price | In Stock | |
| 6 |
|
7O-VV6M-ZQ3P | 24″ Long x 3/8 MPT – Riser Tube | Sign In To View Price | out of stock | |
| 7 |
|
PF-3D4A-KI2V | Check Valve for 15mm OD Copper Tubing Assembly | Sign In To View Price | In Stock |
Downloads
- Specification SheetsSpecification Sheets Download Specification Sheets
- Instruction ManualInstruction Manual Download Instruction Manual
- Warranty: Three Year (Limited)Warranty: Three Year (Limited) Download Warranty: Three Year (Limited)
- Line Drawing Line Drawing Download Line Drawing
- Exploded View Exploded View Download Exploded View
